3,500 lb Manual Sliding Rolling Bridge Jack | Atlas ProJack 35

Add-on rolling bridge jack for the Atlas Garage PRO8000, PRO8000EXT, and PRO9000 8k–9k 4-post lifts.

3,500 lb Sliding Rolling Bridge Jack for Hobbyist 4-Post Lift Bays

A 4-post lift parks the vehicle by its tires. Anything that requires removing the wheels — brake rotors, tires, wheel bearings, shocks — means you need a jack that lives on the lift itself. The ProJack 35 is the matched sliding bridge jack for the Atlas Garage PRO line of 4-post lifts.

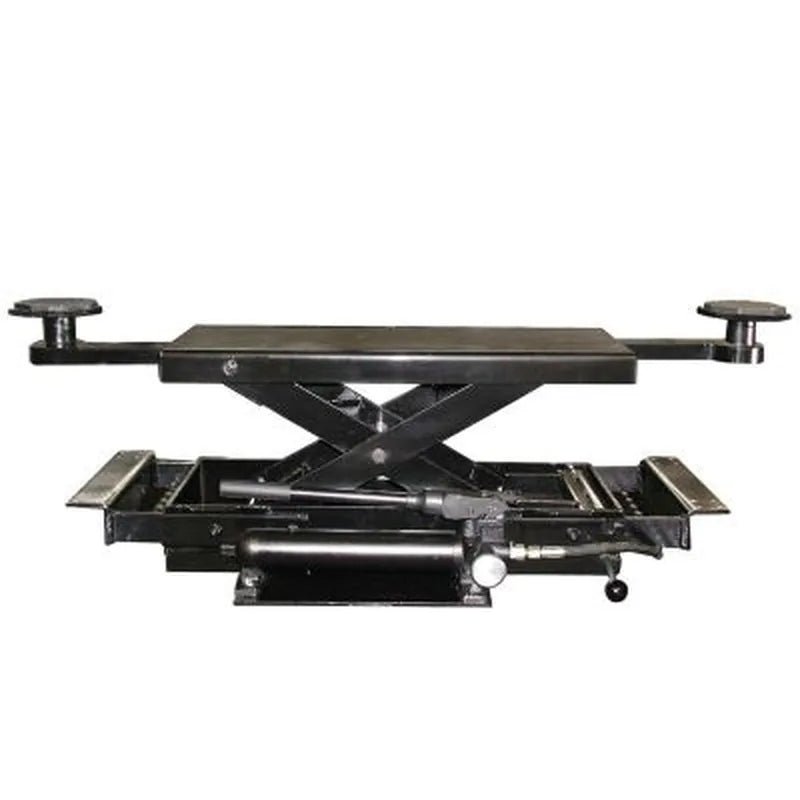

The ProJack 35 is a 3,500 lb capacity manual hydraulic sliding bridge jack that drops onto the runways of a hobbyist 4-post lift and lifts the vehicle off the runway at any point along the lift’s length. Scissor mechanism for level lifting, multiple safety lock positions, and a 4-piece truck adapter set included — no shop air required, hand-pump operation.

What’s Included

• Atlas ProJack 35 sliding bridge jack with hand pump
• 4-piece truck adapter set (2 each at 1-1/2″ and 5″)
• Scissor lifting mechanism with multiple safety lock positions
• Sliding bridge with adjustable arms

Made For

Built for hobbyist 4-post lift owners who want wheels-free service in their garage without running shop air to the lift.

• Home garages with an Atlas Garage PRO8000, PRO8000EXT, or PRO9000
• Small shops without compressed air at every lift
• Compatible with APEX8, APEX9, 408SL, 409HP 4-post lifts

Features

• 3,500 lb Capacity — Lifts the front or rear axle of vehicles up to roughly 7,000 lb gross.
• Manual Hydraulic Hand Pump — No shop air required. Hand-pump operation makes this the right jack for garages without compressed air at the lift.
• Sliding Bridge Design — The bridge slides along the runways to any working position.
• 20-1/2″ to 47″ Lower Extension Width — Fits the runway gap on most hobbyist 4-post lifts.
• 39-1/2″ to 64-3/4″ Top Width — The lifting pads themselves adjust to span both narrow sedans and full-size trucks.
• Scissor Mechanism for Level Lifting — Keeps the lifting pads level throughout travel.
• Multiple Safety Lock Positions — Mechanical safety locks engage at multiple heights.
• 4-Piece Truck Adapter Set Included — Two 1-1/2″ and two 5″ adapters in the box.
• 17-1/4″ Max Lift Height with Adapters — Enough working clearance for wheel removal and brake service.

Specs

Technical Specifications
