6,000 lb Air/Hydraulic Rolling Bridge Jack for 4-Post Lifts | Atlas RJ6BK

Add-on rolling bridge jack for the Atlas Garage PRO9000 and Atlas APEX9 9k 4-post lifts.

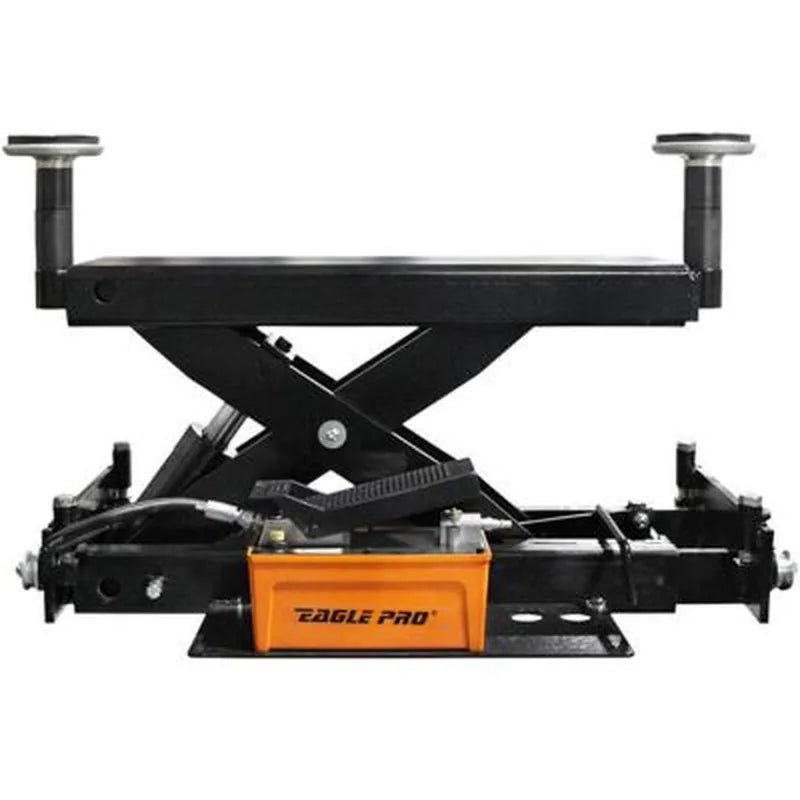

6,000 lb Air/Hydraulic Rolling Bridge Jack for 4-Post Lift Bays

For 9,000 lb 4-post lifts that see real shop work — brake service, tire mounting, suspension R&R — the RJ6BK is the upgrade over a manual jack. 6,000 lb capacity, air-over-hydraulic operation off shop air, scissor mechanism for level lifting, and a 4-piece truck adapter set included.

The RJ6BK drops onto the runways of a 9,000 lb 4-post lift and lifts the vehicle off the runway at any point along the lift’s length. Air-over-hydraulic means the operator’s air supply runs the hydraulic pump on the jack — no manual pumping like a traditional floor jack. Requires 70-115 PSI shop air.

What’s Included

• Atlas RJ6BK 6,000 lb air/hydraulic rolling bridge jack
• 4-piece truck adapter set (2 each at 2″ and 3″)
• Scissor lifting mechanism with multiple safety lock positions
• Adjustable roller arms
• Air/hydraulic power head (external air supply not included)

Made For

• Shops running the Atlas Garage PRO9000 9,000 lb 4-post lift
• Shops running the Atlas APEX9 ALI-certified 9,000 lb 4-post lift
• Independent service shops with shop air at the lift
• Tire shops swapping wheels on a 4-post stored vehicle
• Fleet service bays running 4-post lifts

Features

• 6,000 lb Capacity — Heavy-duty rating for one end of vehicles up to ~12,000 lb gross.
• Air/Hydraulic Operation — Air-powered hydraulic head. Requires 70-115 PSI shop air.
• 35″–55″ Adjustable Width — Fits the runway gap on the typical 9,000 lb 4-post lift.
• 32″–50″ Runway Compatibility — Designed for lifts with 32″–50″ between runways.
• Scissor Mechanism for Level Lifting — Keeps the lifting pads level throughout the travel.
• Multiple Safety Lock Positions — Mechanical safety locks engage at multiple heights.
• 21″ Max Lift Height with Adapters — Plenty of clearance for wheel removal and underside service.
• 4-Piece Truck Adapter Set Included — Two 2″ and two 3″ adapters in the box.
• Powder-Coated Finish — Holds up to brake fluid, shop solvents, and daily handling.

Specs

Technical Specifications
