9,000 lb Overhead 2-Post Lift, Open Floor | Atlas 9OHSC

9,000 lb 2-post car lift — overhead design, open floor

Working under a vehicle without a reliable lift slows everything down. Floor jacks and jack stands eat up time, limit access, and create safety risks that no shop owner should accept. If you’re outfitting a new bay or replacing aging equipment, the right 2-post lift pays for itself in productivity alone.

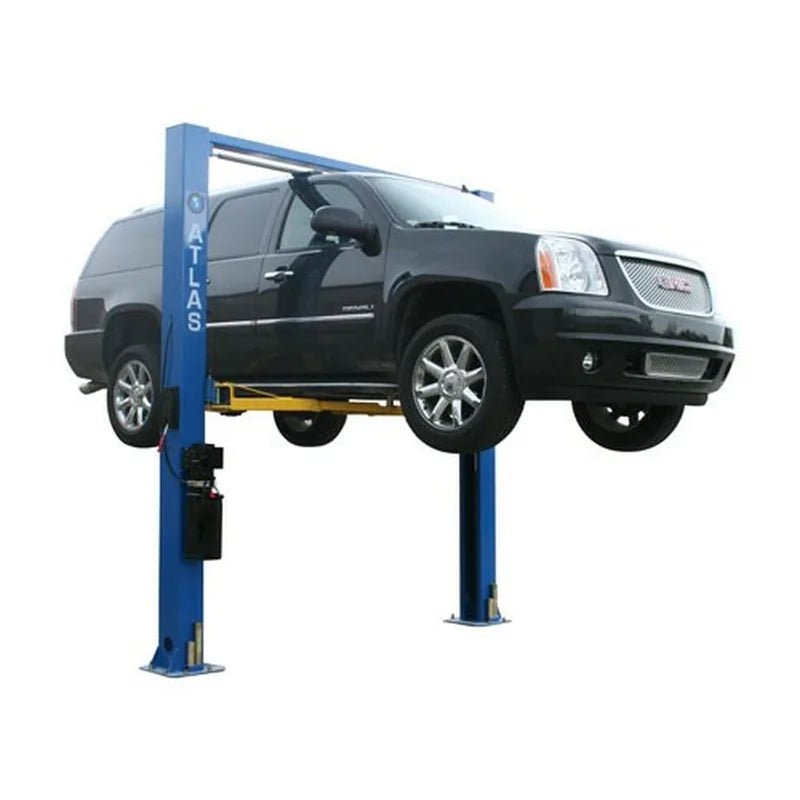

The Atlas 9OHSC delivers 9,000 lbs of lifting capacity in an overhead-connected, open-floor design. Single-piece columns, dual hydraulic chain-drive cylinders, and a single-point lock release give you the strength and speed to move through jobs without second-guessing your equipment.

What’s Included

• Atlas 9OHSC 9,000 lb overhead 2-post lift
• 12-piece truck adapter set
• Mounting hardware

Made For

Built for shops that need a dependable, mid-capacity 2-post lift for everyday work.

• Independent auto repair shops
• Dealership service departments
• Fleet maintenance facilities
• Serious home garages and hobby builders
• Body shops and detail centers

Features

• 9,000 lb. lifting capacity — handles cars, trucks, and SUVs with room to spare
• Overhead design with open floor — no base-plate obstruction, full drive-through clearance of 100 1/2″

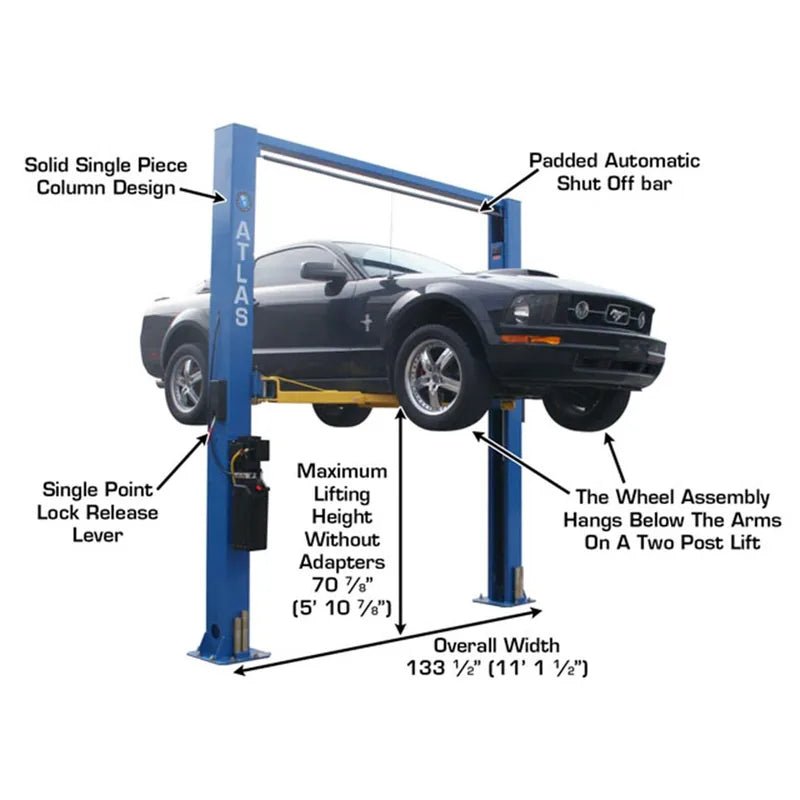

• Single-piece column construction — stronger and more rigid than two-piece bolted columns
• 3-stage front arms / 2-stage rear arms — reach a wide range of lift points on different vehicles
• Automatic arm restraints — arms lock into position for consistent, safe placement every time
• Single-point lock release — lower the lift from one location instead of releasing each arm individually
• Dual hydraulic chain-drive cylinders — smooth, even lifting on both sides with reliable hydraulic power
• Rubber guards on carriages — protect vehicle underbodies from scratches and dents during lifts

Open-floor overhead design for maximum clearance

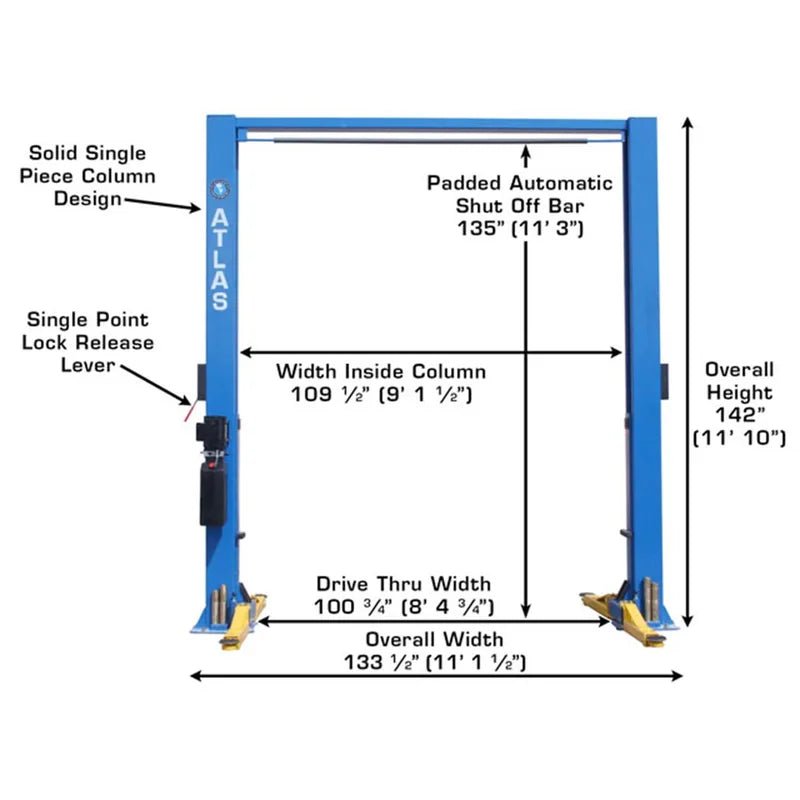

The 9OHSC uses an overhead beam connecting both columns at the top, keeping the floor completely clear between the posts. This gives you 100 1/2″ of drive-through clearance — enough room for full-size trucks and SUVs to roll straight in without tight maneuvering.

With no base-plate connection running across the floor, you also get unobstructed access underneath the vehicle. Creepers, drain pans, and transmission jacks move freely without catching on cross-members or floor plates.

Single-piece columns built for long-term reliability

Each column on the 9OHSC is a single-piece design — no bolted joints or welded seams in the structural path. This matters because column flex under load is one of the most common failure points on cheaper lifts. A one-piece column stays true over years of daily use.

The 8″ x 9 3/8″ column footprint gives the structure a solid base without eating up floor space. Combined with a 16 3/4″ x 17 3/4″ base, the lift stays planted and stable even at full extension.

The right 2-post lift for your shop

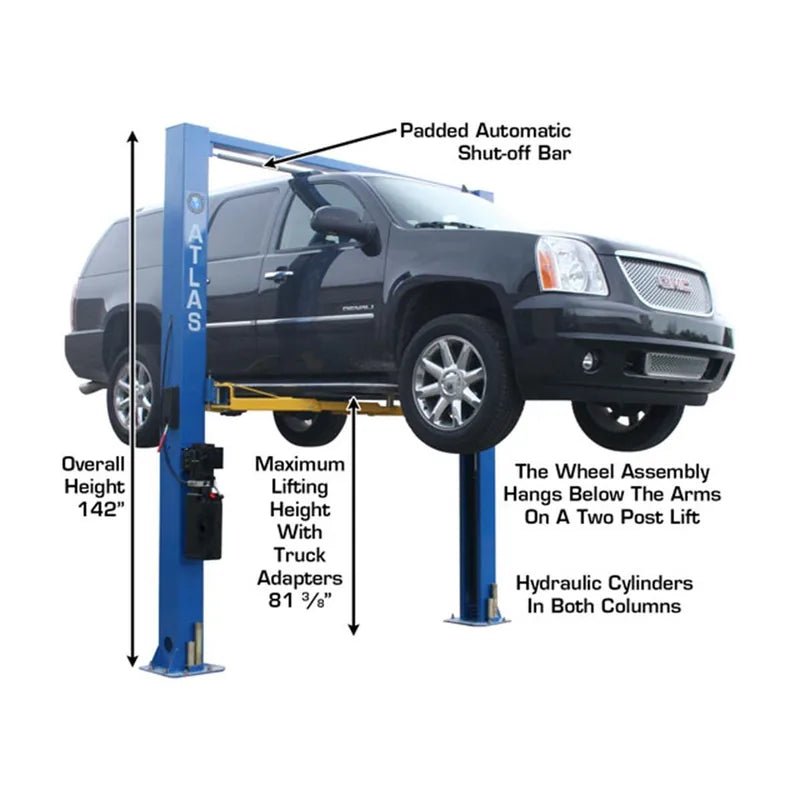

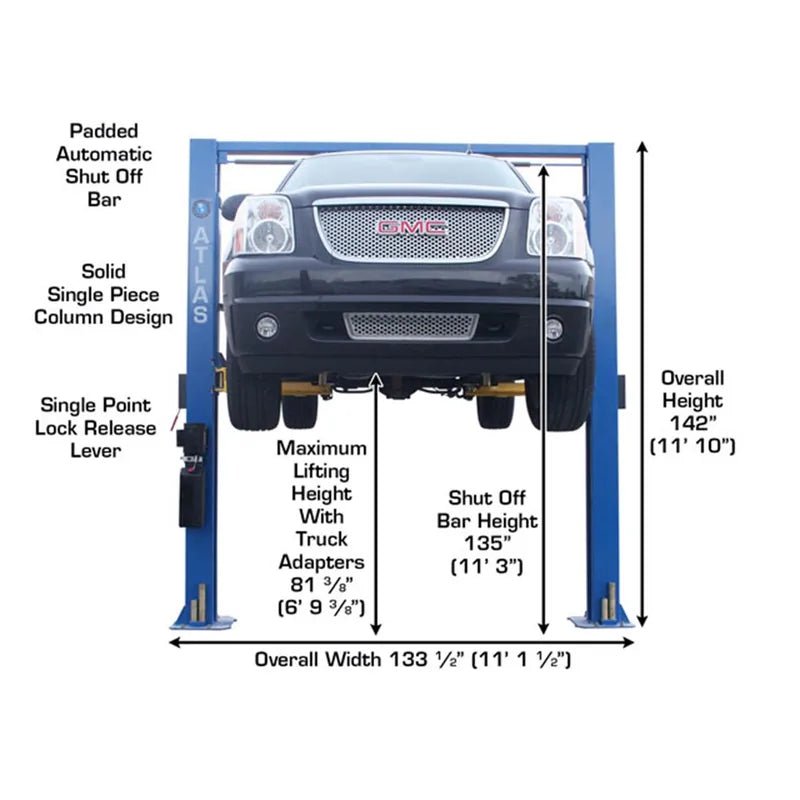

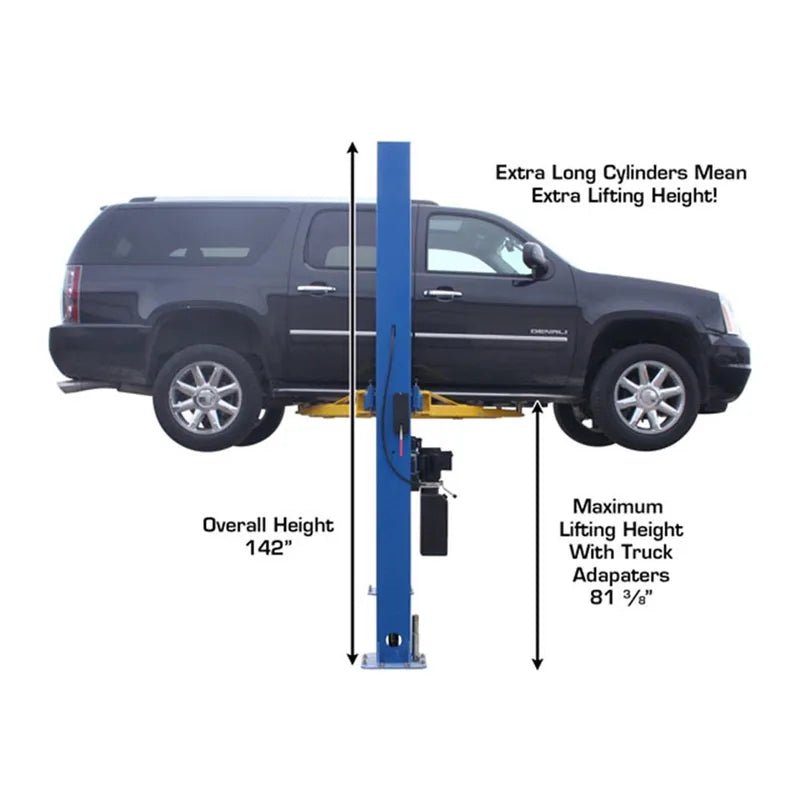

The Atlas 9OHSC gives you 9,000 lbs of capacity, an open-floor overhead design, and single-piece column construction in a package that fits standard bay widths. With a 142″ overall height and 76 3/4″ max lift height (87 3/4″ with adapters), it handles the full range of daily service work.

The included 12-piece truck adapter set and mounting hardware mean you’re ready to install and start lifting on day one — no extra purchases needed.

Don’t wait — scroll back up and click the orange Add to Cart button to get this 2-post lift on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Atlas 9OHSC 9,000 lb overhead 2-post lift owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
